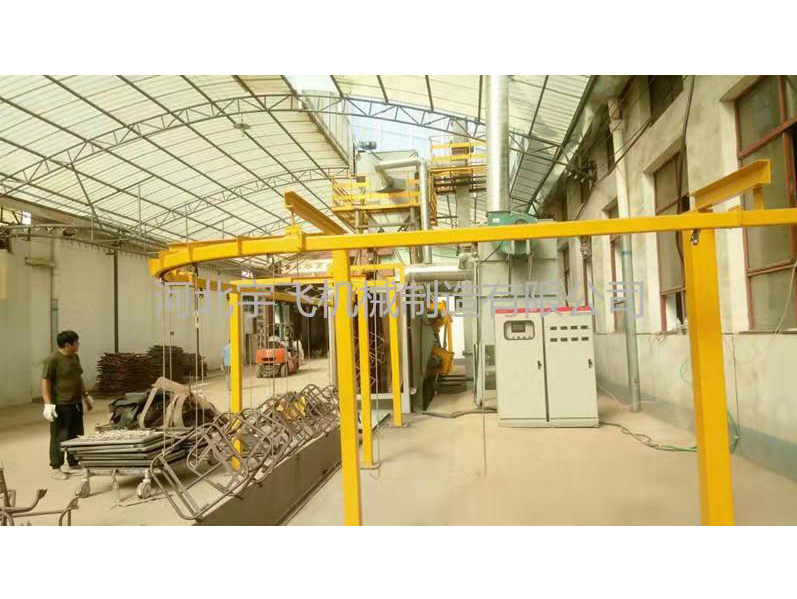

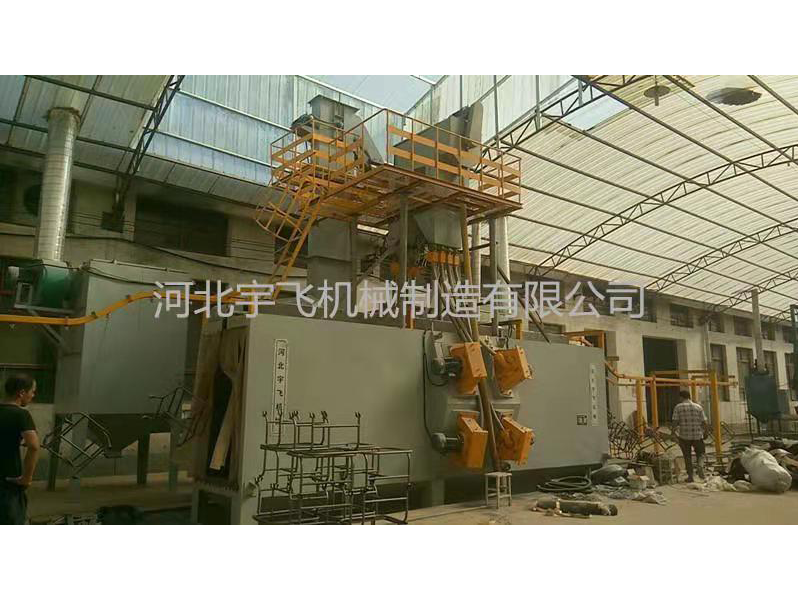

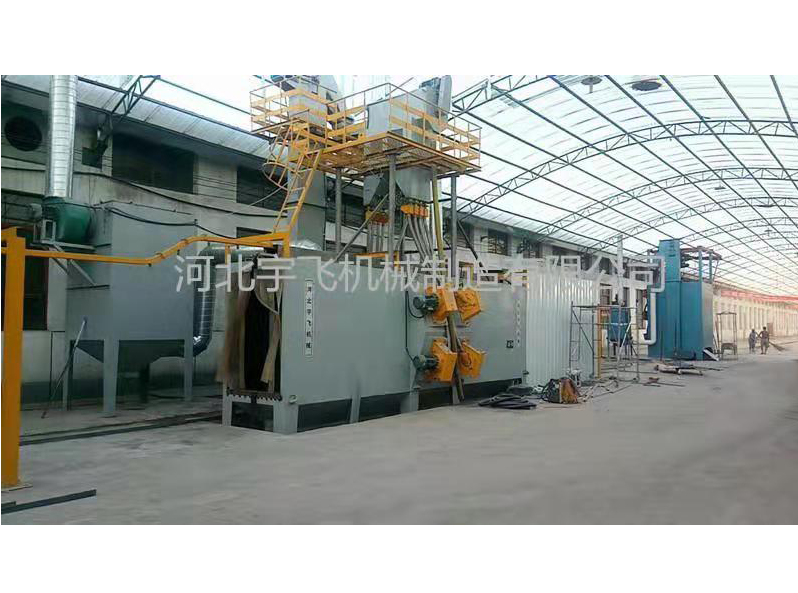

悬链通过式抛丸清理机,尺寸可定做
悬链通过式抛丸清理机本机主要对工件进行高质量的表面清理,工件经抛清理后表面质量有极大提高,满足现在市场对工件的高质量要求。它能对铸件(钢材)表面施以强力抛丸,除掉...
悬链通过式抛丸清理机本机主要对工件进行高质量的表面清理,工件经抛清理后表面质量有极大提高,满足现在市场对工件的高质量要求。它能对铸件(钢材)表面施以强力抛丸,除掉...
产品详情
悬链式抛丸清理机产品介绍:
悬链式抛丸清理机也是抛丸机里面的一种。悬链式抛丸清理机适合于小型铸铁件、铸钢件、锻件及冲压件的抛丸清理,特别适合于锻件、铸件的清理,以去掉工件表面上的粘砂、铁锈、氧化皮、污物等,使工件表面呈现金属本色,消除工件内部应力,提高工件抗疲劳性,增加工件喷漆时的漆膜附着力,并最终达到提高工件表面及内在质量的目的。
适合于多种品种、中小批量铸铁件、铸钢件、锻件及钢结构件的表面处理和抛丸强化,例如发动机缸体缸盖、电机壳体等清理效果都不错。同时也是汽车、拖拉机、柴油机、电机阀门等行业的理想选择。
Product introduction of catenary shot blasting machine.
The catenary shot blasting machine is also a kind of shot blasting machine. The catenary shot blasting machine is suitable for the shot blasting of small iron castings, steel castings, forgings and stamping parts. It is especially suitable for cleaning forgings and castings to remove sticky sand, rust, oxide scale and dirt on the surface of the workpiece. Objects, etc., make the surface of the workpiece appear metallic, eliminate internal stress of the workpiece, improve the fatigue resistance of the workpiece, increase the adhesion of the paint film when the workpiece is painted, and finally achieve the purpose of improving the surface and internal quality of the workpiece.
It is suitable for surface treatment and shot blasting strengthening of various types, small and medium batch iron castings, steel castings, forgings and steel structural parts. For example, the cleaning effect of engine cylinder heads and motor housings is good. It is also an ideal choice for industries such as automobiles, tractors, diesel engines, and motor valves.
技术参数
型号Model |
QP6802 |
QP6804 |
QP6806 |
QP6808 |
QP681 |
QP681L |
QP681L+ |
清理宽度Cleaning width(mm) |
200 |
400 |
600 |
800 |
1000 |
1000 |
1200 |
悬链输送速度Catenary conveyor speed(无极调速continuously variablem/min) |
0.5-2 |
0.5-2 |
0.5-3 |
0.5-6 |
0.5-6 |
0.5-6 |
2-8 |
处理工件高度Handle workpiece height(mm) |
1000 |
1000 |
1500 |
1800 |
2100 |
1800 |
2100 |
抛丸量Shot blasting amount(kg/min) |
4x120 |
8x200 |
8x250 |
8x250 |
12x250 |
16x250 |
24x200 |
首次装入量The weight of the first steel shot added (kg) |
3000 |
4000 |
4000 |
4500 |
5500 |
7000 |
12000 |
通风量 Ventilation amount (m3/h) |
18000 |
18560 |
19000 |
22550 |
27758 |
28050 |
38000 |
外形尺寸Machine size (mm) |
25170x2500x9015 |
30180x3250x7095 |
30200x3370x6797 |
38000x3370x6797 |
42000x3370x6797 |
46200x3370x6797 |
46200x3370x6797 |
地面以下深度Depth below ground(mm) |
0 |
0 |
1257 |
1850 |
2353 |
2800 |
3100 |
总功率Total Power(kw) |
55 |
78.3 |
155 |
164 |
185 |
275 |
320 |
